Description
Ceramic Slurry Pump Parts

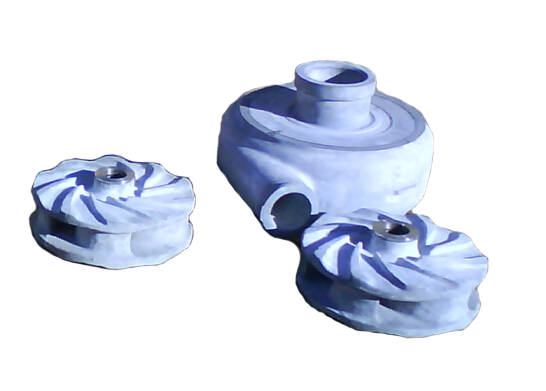

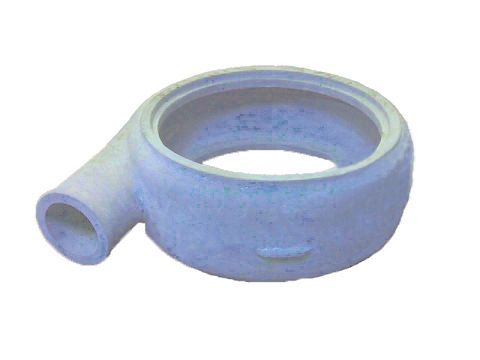

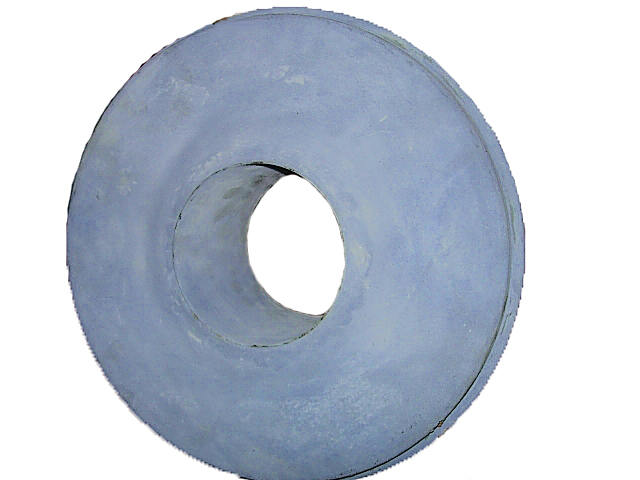

Matec Solutions supply the main Ceramic Slurry Pump Parts: Impeller/Volute Liner/Throatbush/Frame Plate Liner Insert. All of them are genuine replacements for Warman Pump Parts, reliable quality enables the steady operation of our customers, high performance of longer wear life help saving the cost. We promise full life cycle guarantee, we take care of our customer and products at any time.
Ceramic pump parts works well for fine particle slurry pumping, if the solids size is big, this is not a good choice.
Applications：Concentration Plant Processing, Tailing Pumping, Chemical Slurry
Features:
1, Compatible with AH seires Warman Pump.
2, Longer wear life means sustained pump efficiency over time to reduce energy consumption;
3, Excellent resistance to most Acid and Alkaline duties, PH0-14;
4, Light weight for easy installation and maintenance;
5, Minimize down time and increase the availability of the plant.
6, High temperature thermal shock resistance;
7, Excellent cavitation resistance.
8, Compatible and same assembly with Metal lined pumps.
9, 3-5 times Remarkable life improving over regular material A05, A12, A61,R55,U38 etc;
Specifications:
| SiC Ceramic | Unit | Value | Test Standard |
| Density | g/cm3 | 3.21 | ASTM C20 |
| Hardness | Mohs | 13 | ASTM-C1895 |
| Tensile | Mpa | 310 | ACMA #4 |
| Elasticity | Mpa | 476 | ASTM C848 |
| Max.Temp | ℃ | 1400 | (no load cond) |
