Warman Pump Parts Replacements-Matec Solutions

Description

Metallic Slurry Pump Parts

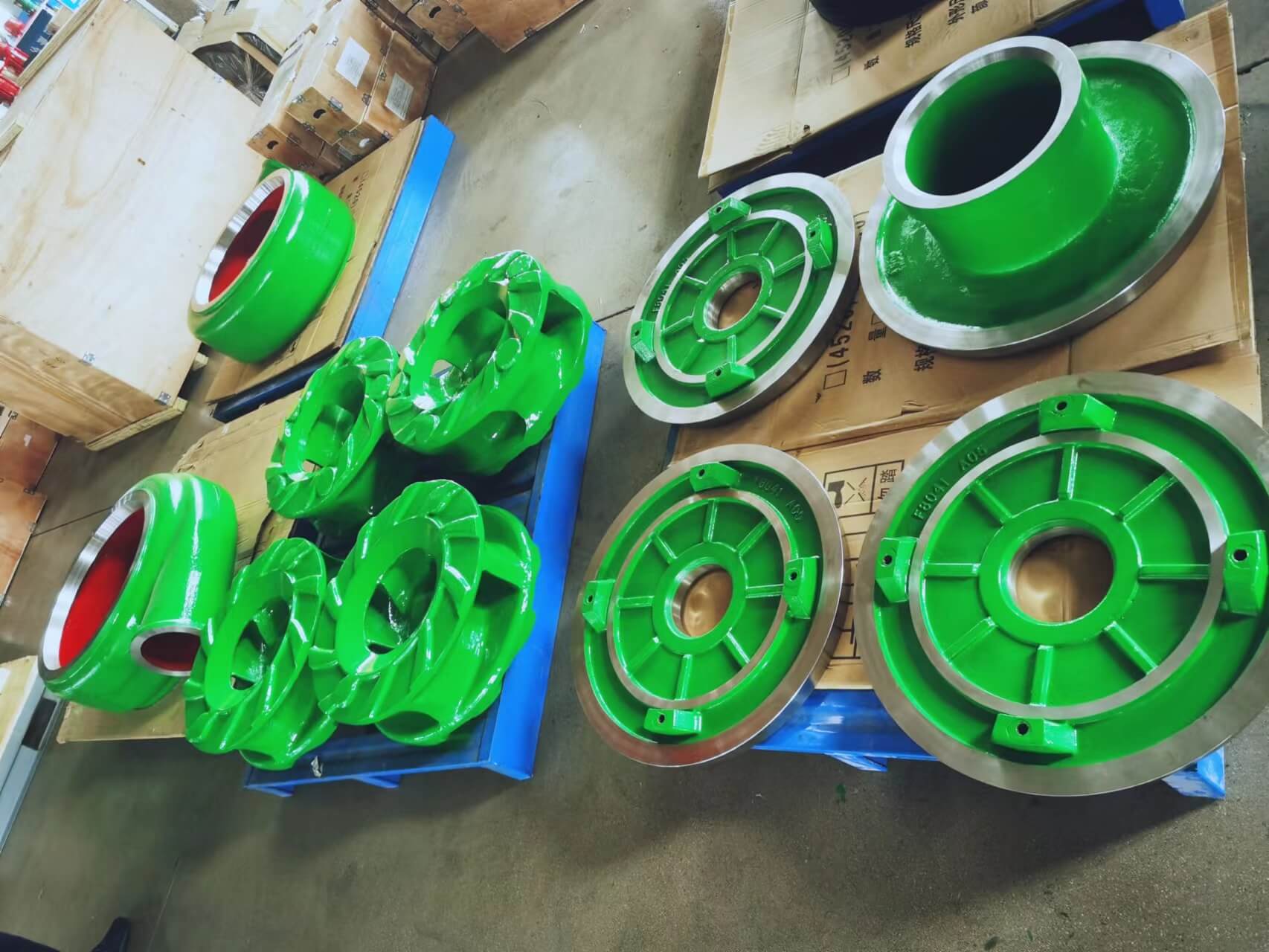

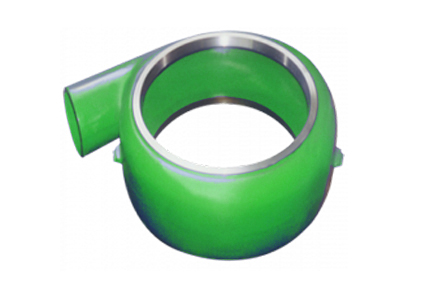

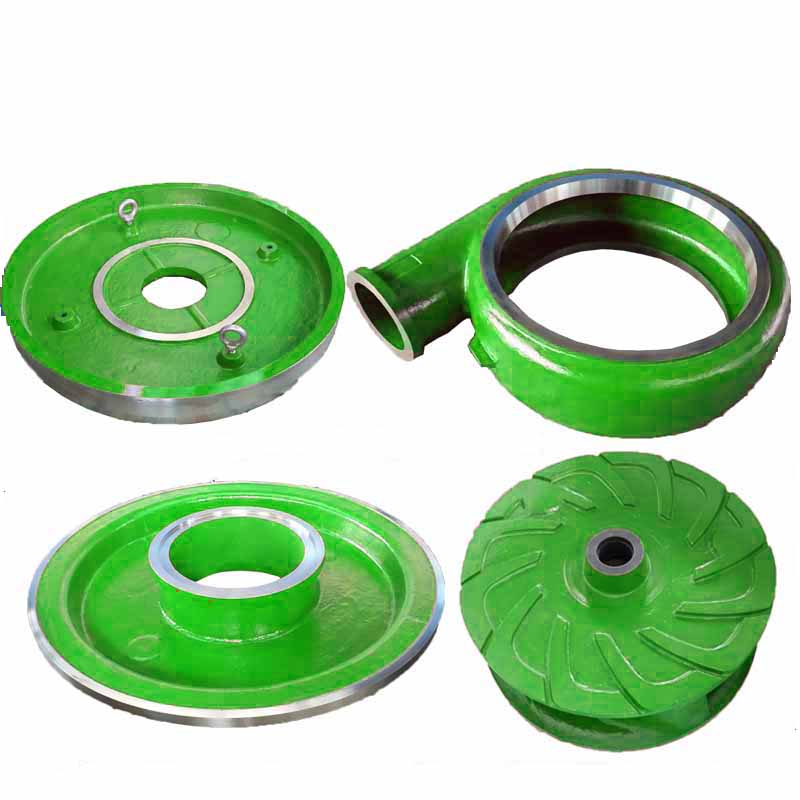

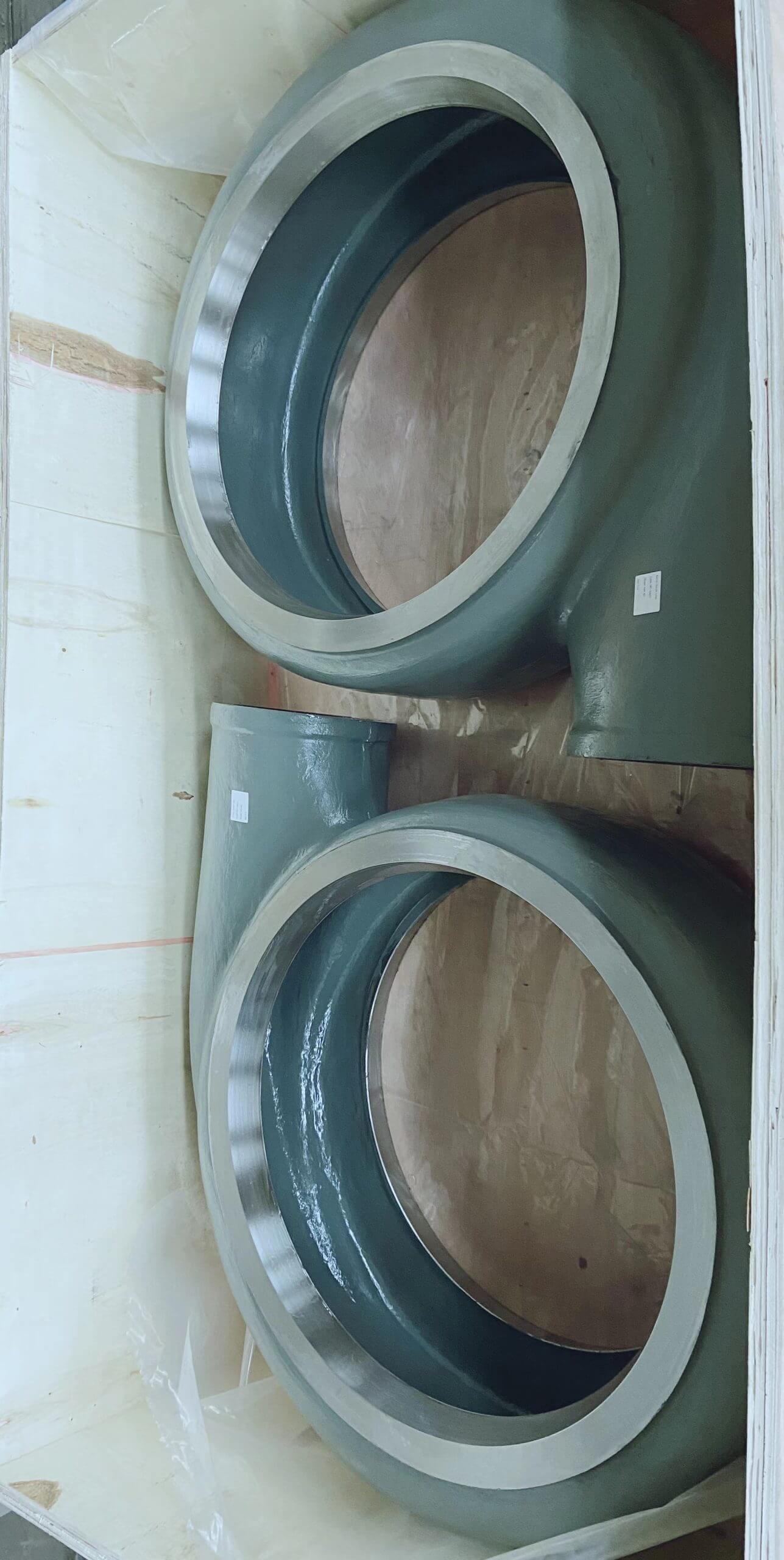

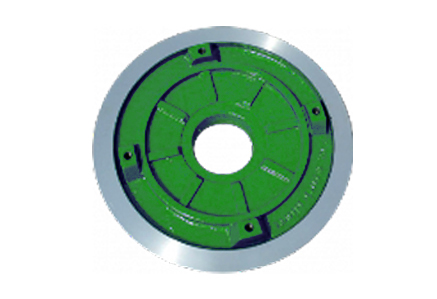

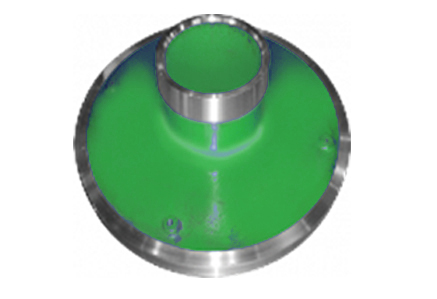

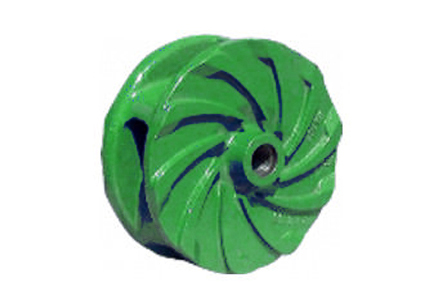

Matec Solutions supply the main Metallic Slurry Pump Parts: Impeller/Volute Liner/Throatbush/Frame Plate Liner Insert, all of them are genuine replacements for Warman Pump Parts, reliable quality enables the steady operation of our customers, high performance of longer wear life help saving the cost. We promise full life cycle guarantee, we take care of our customer and products at any time.

Applications：

Mill Discharge, Cyclone Feeding, Concentration Plant Processing, Tailing Pumping, Chemical Slurry, Quarry

Wraman Pump Parts Equivalent:

AH：1.5/1B, 2/1.5B, 3/2C, 4/3C, 4/3D, 6/4D, 6/4E, 8/6E, 8/6R,10/8F, 10/8ST, 12/10ST, 14/12ST, 16/14TU, 20/18TU;

HH: 1.5/1C, 3/2D, 4/3E, 6/4F, 8/6S;

L: 50B, 75C, 100D, 150E, 300F, 350S, 400ST, 450ST, 550TU, 650TU;

M: 10/8E, 10/8F, 12/10E, 12/10F;

G: 6/4D, 8/6E, 10/8S, 12/10ST, 14/12G, 18/16T;

SP: 40P, 65Q, 100R, 150S, 200S, 250T, 300T;

MCR: 350, 450, 550, 650 .

Materials Specification:

Alloy A05 is a wear resistant white cast iron that offers excellent performance under erosive conditions, hardness is over 600HB. It works well for mild acidic duties (PH5-14) where erosion resistance is required;

Alloy A07 is a martensitic white iron having a reasonable combination of wear resistance and toughness. Hardness 700-800, PH 6-12, recommended for very abrasive mill discharge application;

Alloy A61 is a hypereutectic white iron, suitable for high wear duties, where corrosion is not severe. pH range 6 to 14. The alloy may provide up to three times the life of A05, hardness 650HB;

Alloy A49 is a corrosion resistant white iron suitable for low pH corrosion duties, where erosive wear is also a problem, particularly suitable for FGD applications.

Features:

Optimized alloy material with higher anti-abrasiveness and toughness, to ensure longer service life, easpecially for heavy duty applications like mill discharge, cyclone feeding and tailings;

Higher performance and efficiency, durable structure, more uptime, less labor, lower cost of ownership.
